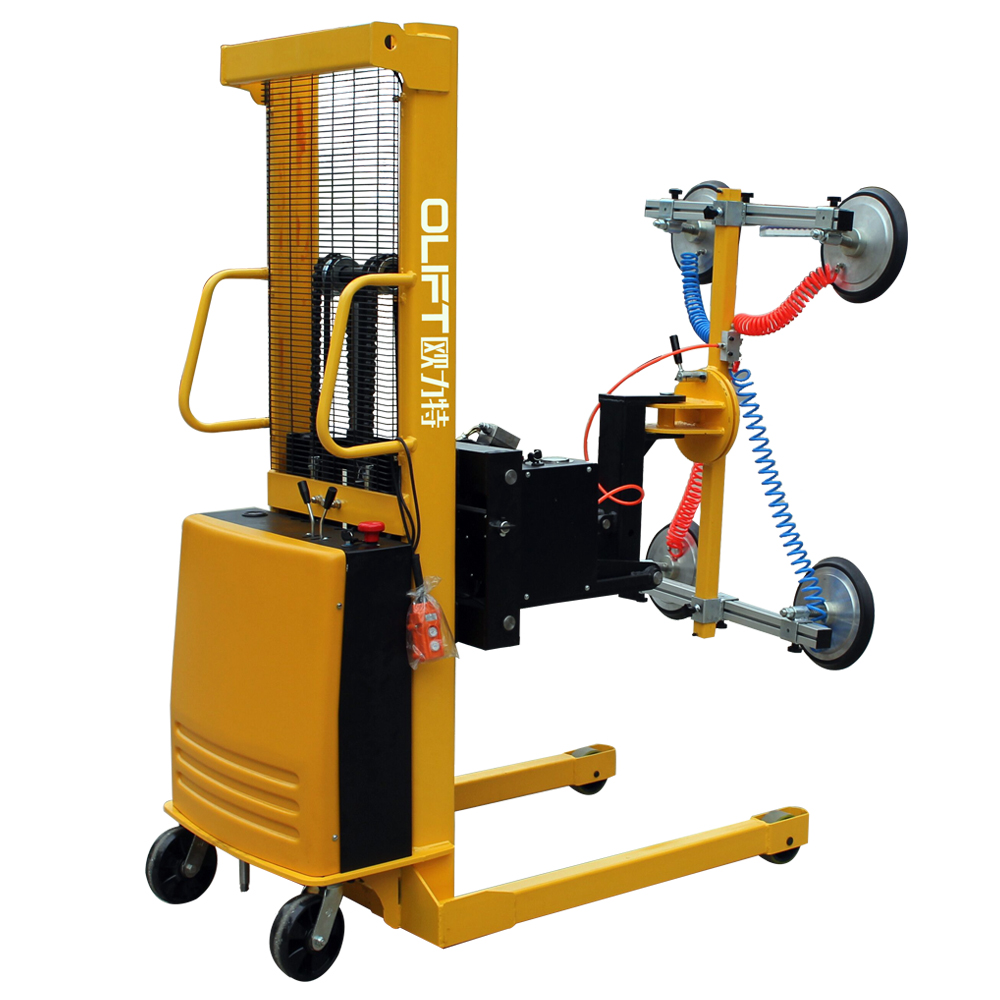

TS0416 Semi-Electric Vacuum Lifter
The TS0416 combines manual travel with electro-hydraulic lifting for glass and flat-panel handling. Its listed load capacity depends on whether the load is in a horizontal or vertical position.
Key Specifications
- Listed capacity: 400 kg horizontal and 200 kg vertical.
- Horizontal suction-cup lifting height options: 1,600 or 2,500 mm.
- Adjustable suction-cup frame width: 1,000–1,400 mm.
- Overall dimensions: 1,450 × 800 × 2,000 mm; net weight: 425 kg.
Configuration and Application
The published specification lists 90° downward tilt and horizontal rotation 90° to the left or right. Confirm the movement needed at your site and the permitted load for that position.
Information for Your Quotation
Provide panel material and surface, weight and dimensions, horizontal or vertical handling position, lift height, doorway and elevator clearances, quantity and destination country.
Request a TS0416 Quote · Compare equipment in this range
Is travel electrically powered?
The TS0416 description specifies manual travel and powered hydraulic lifting. Confirm the required travel and lifting arrangement before ordering.
| Model: | TS0416 |
| Capacity: | 400kg(Horizontal) 200kg(Vertical) |
| Suction cup frame adjustable width: | 1000 to 1400mm |
| Max height of the suction cup(Horizontal): | 1600mm/2500mm |
| Min height of the suction cup(Horizontal): | 140mm |
| Max height of the suction cup(Vertical): | 2268mm |
| Min height of the suction cup(Vertical): | 808mm |
| QTY of caps: | 4xφ30 |
| The vertical direction can be turned down by 90 degrees. | |
| The horizontal direction can be rotated 90 degrees to the left and right. | |
| Battery: | 2x12V/70A |
| Charger: | 24V/10A |
| Lift motor: | 24V/2000W |
| Overall Length: | 1450mm |
| Overall Width: | 800mm |
| Overall Height: | 2000mm |
| Net Weight: | 425kg |
| Packing size: | 1550*1100*2100mm |
| Gross Weight: | 500kg |
