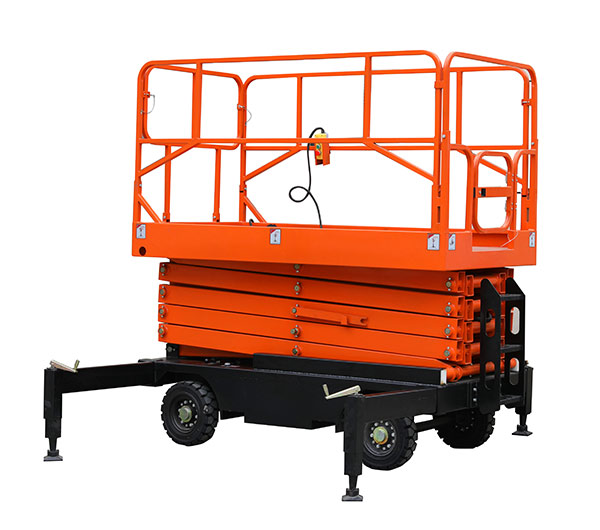

Semi electric Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC power is also available for option. Semi electric scissor lift platform is widely used in factories, warehouses, public places, stations and so on, which provides a good choice for high-altitude operation.
Main spec.
- Working height：8m-16m
- Safety capacity：300-500kg
| Model Number | PT6S | PT7.5S | PT9S | PT12S | |
| Max. Platform Height | mm | 6000 | 7500 | 9000 | 12000 |
| Min. Platform Height | mm | 1050 | 1175 | 1300 | 1425 |
| Platform Size | mm | 2270x1150x1100 | |||
| Lift Rated Capacity | kg | 500 | 500 | 500 | 500 |
| The Developed Dimension Of Legs | mm | 2700×2200 | 2700×2200 | 2700×2200 | 3100×2200 |
| Elevating Time | s | 70 | 70 | 100 | 100 |
| Electromotor Power | kw | 2.2 | 2.2 | 3 | 3 |
| Voltage | v | 220 | 220 | 380 | 380 |
| Overall Length | mm | 2540 | 2540 | 2540 | 2540 |
| Overall Width | mm | 1350 | 1350 | 1350 | 1350 |
| Overall Height（Folding frame） | mm | 1730 | 1855 | 1980 | 2105 |
| Overall Net Weight | kg | 1540 | 1720 | 1900 | 2080 |
