Semi electric order picker-TH series:

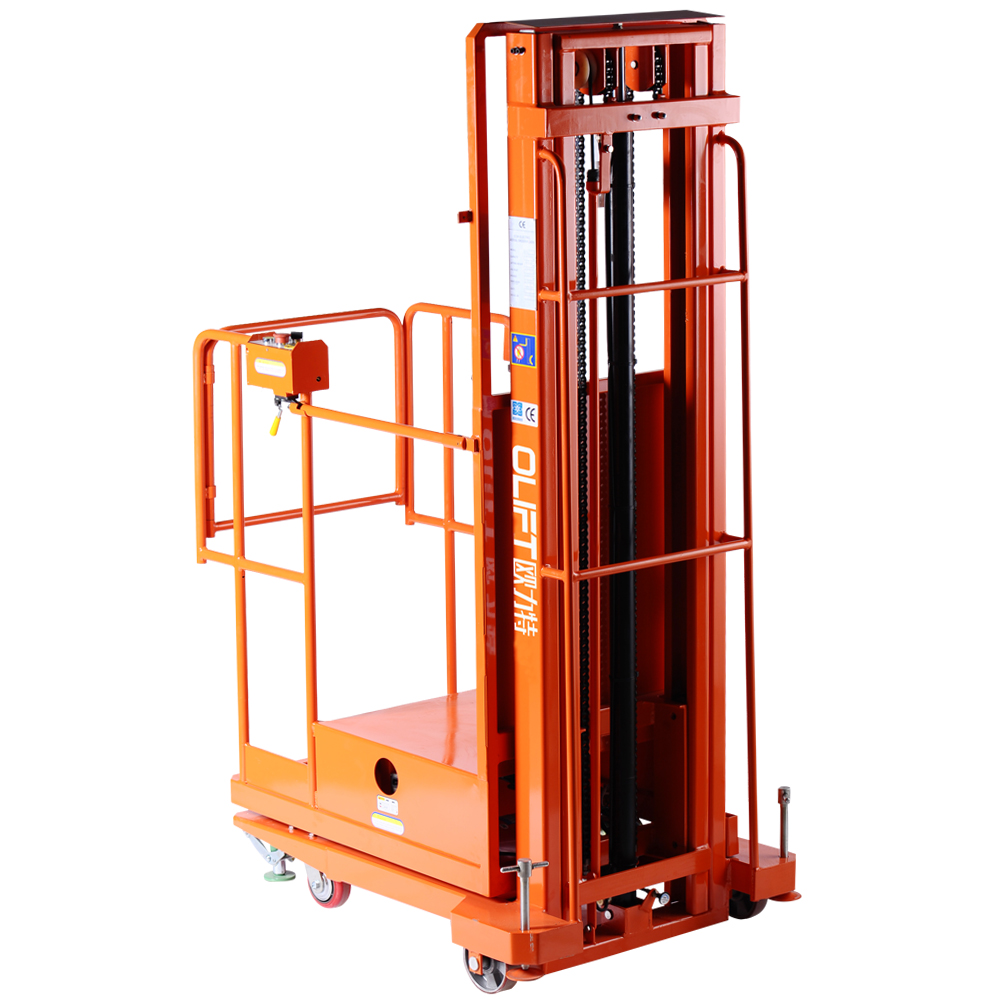

Semi-Electric Aerial Order Picker-TH Series
- Our aerial order picker is electrically lift and manually pushed
- Adopt imported hydraulic pump station
- Equipped with maintenance-free battery
- No noise and pollution during operation
- Applied for picking and placing small items
- The product can be powered by DC.
| Model Number | TH0227 | TH0233 | TH0240 | TH0245 | |
| Min.Platform Height | mm | 2720 | 3300 | 4000 | 4500 |
| Max.Platform Height | mm | 4020 | 4900 | 5400 | 6100 |
| Ground Clearance | mm | 30 | 30 | 30 | 30 |
| Lift Rated Capacity | kg | 200 | 200 | 200 | 200 |
| Platform Size（l*n) | mm | 600×600 | 600×640 | 600×640 | 600×640 |
| Lifting Motor | v/kw | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
| Aneroid Battery | v/Ah | 12/120 | 12/120 | 12/120 | 12/120 |
| Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length | mm | 1300 | 1300 | 1320 | 1320 |
| Overall Width | mm | 850 | 850 | 850 | 850 |
| Overall Height | mm | 1760 | 2040 | 1830 | 2000 |
| Overall Net Weight | kg | 270 | 320 | 380 | 420 |
