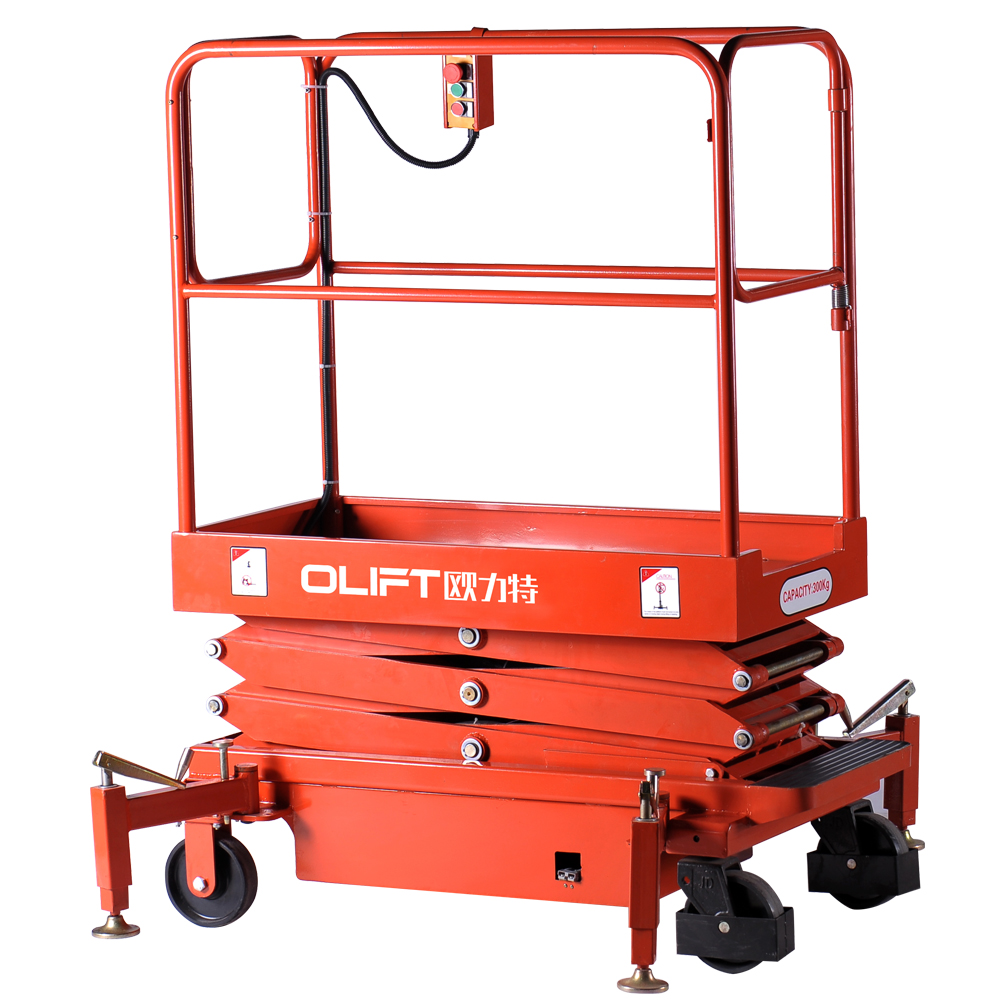

Semi-Electric Mini Scissor Lift Platform
Mini Scissor Lift Platform PM series
1.Fully stable safe working load of 300kg.
2.Sturdy rectangular base frame with 8” swivel casters for easy rolling and maneuverability.
3.Heavy duty tubular steel guardrails maximize durability.
4.Solid steel deck platform with slip-resistant surface.
5.Battery powered elevation with inbuilt variable charger 110 and 240 volt.
6.Bubble levels indicate proper leveling, essential for safe operation.
7.Manual platform lowering valve for emergency.
8.Conforms to EN 1570.
| Model No. | PM1.8 | PM3.0 | PM3.9 | PM4.8 | |
| Capacity | kg | 300 | 300 | 300 | 300 |
| Platform Height(Max) | mm | 1800 | 3000 | 3900 | 4800 |
| Working Height(Max) | mm | 3800 | 5000 | 5900 | 6800 |
| Platform Height (Min) | mm | 550 | 650 | 750 | 850 |
| Platform Size | mm | 1150×600 | 1150×600 | 1150×600 | 1150×600 |
| Overall Length | mm | 1280 | 1280 | 1280 | 1280 |
| Overall Width | mm | 760 | 760 | 760 | 760 |
| Overall Height (Folding) | mm | 1650 | 1720 | 1800 | 1850 |
| Elevating Rise Time | sec | 10 | 33 | 53 | 63 |
| Elevating Fall Time | sec | 7 | 30 | 50 | 60 |
| Lifting Motor | V/kw | 12/0.8 | 12/0.8 | 12/0.8 | 12/0.8 |
| Integrated Charger | V/A | 12/15A | 12/15A | 12/15A | 12/15A |
| Weight | kg | 360 | 390 | 450 | 490 |
