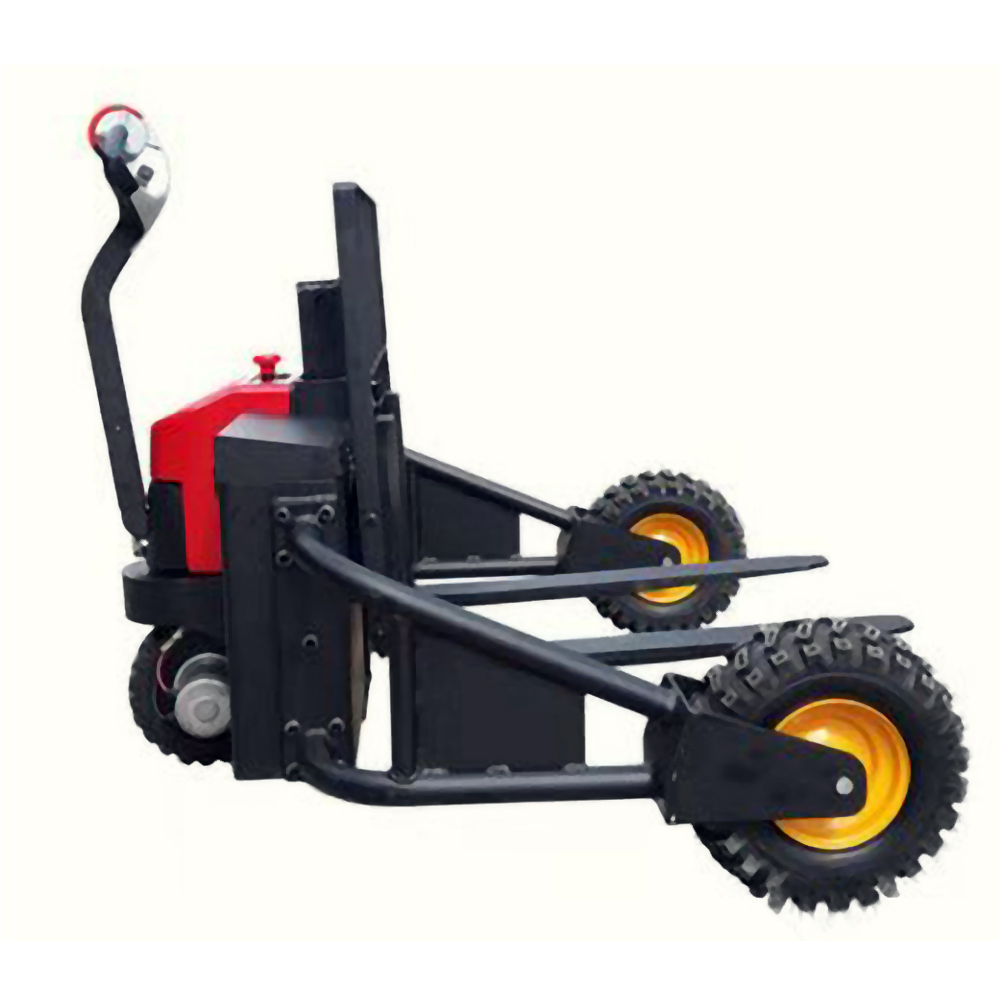

Rough Terrain Electric Pallet Truck
TX series
Electric trucks can’t work outdoors?
You don’t have to worry about this problem anymore after you get our this type of outdoors pallet truck which is electric lifting, electric walking and with oversized wheels. It can help you solve the handling problem such as bad road surface environment.
The body of this outdoors pallet truck is made of high-strength steel and has a large carrying capacity. It is suitable for rough terrain on construction sites, docks, etc. The forks are suitable for handling various types of pallets on rough ground.
Due to its rugged construction, durability, light weight and flexibility, it can be loaded by a single person and is suitable for single-person work.
| Model Number | TX10 | TX13 | TX15 | TX20 | |
| Capacity | kg | 1000 | 1300 | 1500 | 2000 |
| Load centre | mm | 500 | 600 | 600 | 600 |
| Max. fork height | mm | 330 | 330 | 330 | 330 |
| Min. fork height | mm | 50 | 50 | 50 | 50 |
| Fork length | mm | 1070 | 1070 | 1070 | 1070 |
| Max. fork width | mm | 840 | 685 | 840 | 840 |
| Lifting speed(laden) | mm/s | 13 | 13 | 13 | 13 |
| Driving speed(unladen) | km/h | 4.5 | 4.5 | 4.5 | 4.5 |
| Driving speed(laden) | km/h | 3.5 | 3.5 | 3.5 | 3.5 |
| Travel gradeability(unladen) | % | 10 | 10 | 10 | 10 |
| Travel gradeability(laden) | % | 5 | 5 | 5 | 5 |
| Lifting motor | kw | 0.8 | 0.8 | 1 | 1.2 |
| Drving motor | kw | 0.8 | 1.2 | 1.2 | 1.5 |
| Battery | V/Ah | 2*12V/70Ah | 2*12V/120Ah | 2*12V/120Ah | 2*12V/120Ah |
| Charger | V/A | 24V10A | 24V15A | 24V15A | 24V15A |
| Driving wheel | mm | Φ310*100 | Φ310*100 | Φ310*100 | Φ310*100 |
| Front wheel | mm | Φ406*110*2 | Φ406*110*2 | Φ406*110*2 | Φ406*110*2 |
| Overall length | mm | 1700 | 1700 | 1700 | 1700 |
| Overall width | mm | 1575 | 1270 | 1575 | 1575 |
| Overall height | mm | 1235 | 1235 | 1235 | 1235 |
