Electric Pallet Stacker Model EL-M series

Electric Pallet Truck With Lithium—TP15E
Mini Walkie Electric Pallet

Configuration and performance:
1. Vehicle – small size, light weight, easy to operate;
2. Battery-lithium battery power, more energy-saving, more environmentally friendly;
3. Motor – Permanent magnet brush-less drive and hoist motor, maintenance-free, high efficiency, long life;
4. Control – self-made driver and lifting controller, multiple protection, high reliability;
5. Fork – Double-sided pallet design, three length forks for different users to choose;
6. Standard lifting limit switch, safe and energy-saving;
7. Open layout, ultra-fast replacement of driving wheels, easy maintenance.

ModelUnitEL12M / EL15M
DriveElectric
Operator typeStanding(with arm guards)
Load capacity/rated loadkg1200/1500
Load center distancemm500
Lift heightmm1600/2000/2500/3000/3300/3500
Lowered mast heightmm2090/1590/1840/2090/2240/2340
Extended mast heightmm2090/2560/3060/3560/3860/4060
Lowered fork heightmm90
Fork dimensionsmm60/142/1070
Width over forksmm550/660
Turning radiusmm1470(fold)/1880
Wheelmm1225
TyresPolyurethane
Wheel Size, Front WheelmmΦ80×70
Wheel Size, Rear WheelmmΦ210×70
Additional WheelmmΦ115×56
Ground clearancemm50
Tread,frontmm428/538
Tread,rearmm585
Aisle width(1000×1200 Crosswise)mm2315
Aisle width(800×1200 Lengthwise)mm2265
Travel speed, laden/unladenkm/h3.5/3.5
Lift speed, laden/unladenmm/s85/120/80/120
Max gradient performance, laden/unladen%4-6/3-6
Overall Lengthmm1770(fold)>/2180
Overall Widthmm790
Service brakeElectric brake
Battery voltage/nominal capacityV/Ah24V/75
Manufacturer of drive controlCURTIS
Drive motorkw0.75
Lift motorkw2.2
Service weight(with battery)kg600
SteeringMechanical steering

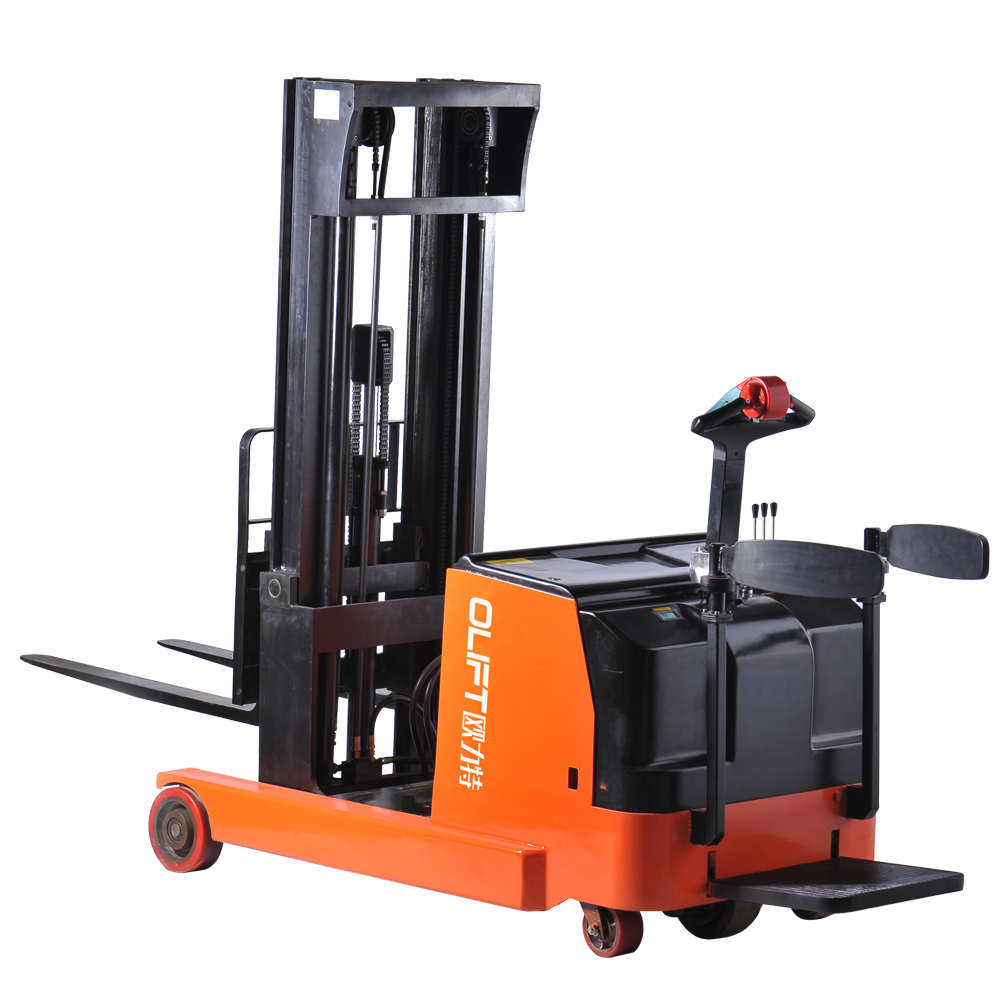

    Electric Reach Stacker-TM

    1.Electric powered steering(EPS),electromagnetic brake. 2.Vertical driving wheel unit,powerful and reliable. 3. Multi way valve controls lift,forward and tilt of forks. 4.Small overall length allows stacking in a narrow aisle.

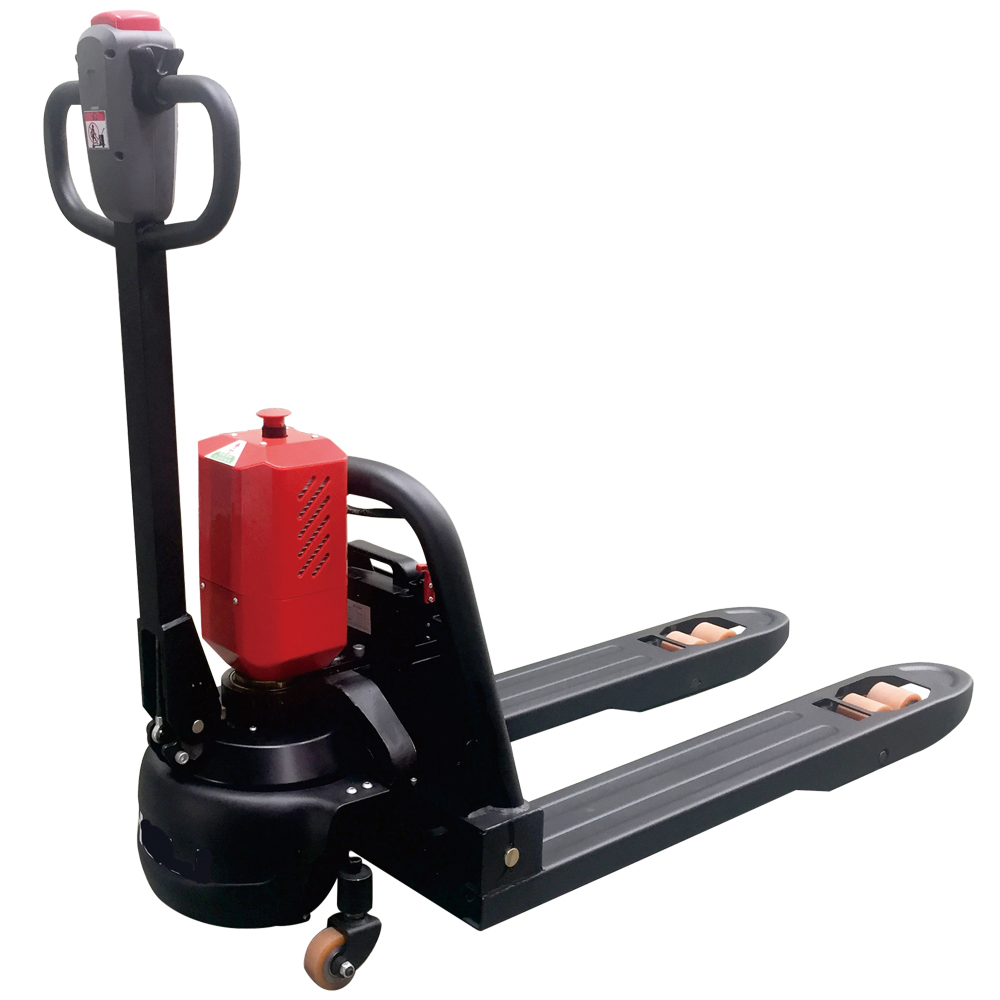

    Electric Pallet Truck With Lithium-TP15E

    Configuration and performance: 1. Vehicle – small size, light weight, easy to operate; 2. Battery-lithium battery power, more energy-saving, more environmentally friendly; 3. Motor – Permanent magnet brush-less drive and hoist motor, maintenance-free, high efficiency, long life;

    Full Electric Order Picker

    Maintenance free battery with intelligent charger, long in service life and easy to operate. The self-propelled order picker can automatically adjust running speed according to the lifting height, resulting in higher safety only. It can be operated by one person. The order picker can freely pass through the narrow aisle.
