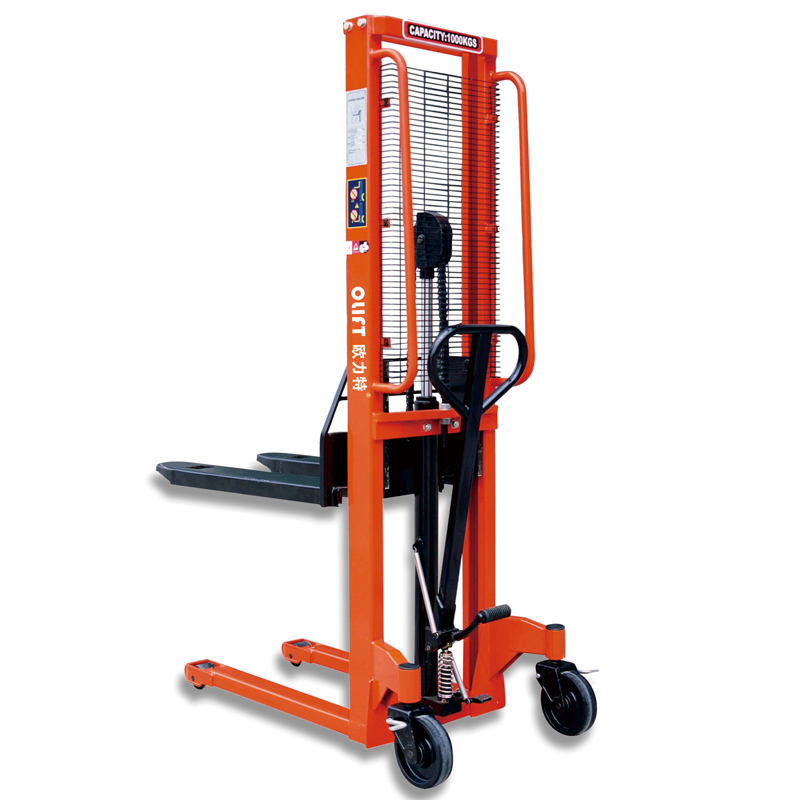

Manual Stacker A401 A402 A403 A404 A405 A406
1.Simple structure,
2.flexible operation,
3.low failure rate
4.Suited for working in narrow way
Our manual hand stacker features simple structure, flexible operation, low failure rate and high safety.
It is ideally suited for stacking, loading, unloading and transporting operations in narrow aisles ans restricted spaces.
| Model Number | A401 | A402 | A403 | A404 | A405 | A406 | |
| Rated Capacity | kg | 500 | 1000 | 1500 | 2000 | 1000 | 1000 |
| Load Center | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Min. Fork Height | mm | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. Fork Height | mm | 1600 | 1600 | 1600 | 1600 | 2500 | 3000 |
| Fork Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Fork Width | mm | 300-850 | 300-850 | 320-850 | 320-850 | 320-850 | 320-850 |
| Min. Turning Radius | mm | 1100 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Whell Base | mm | 996 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Front Wheel Distance | mm | 213 | 178 | 178 | 178 | 210 | 210 |
| Overall Length | mm | 1280 | 1380 | 1380 | 1380 | 1340 | 1340 |
| Overall Width | mm | 850 | 850 | 850 | 850 | 850 | 850 |
| Overall Height | mm | 1980 | 2100 | 2100 | 2100 | 1810 | 2060 |
| Overall Net Weight | kg | 155 | 255 | 265 | 290 | 355 | 370 |
