Low Profile Stationary Scissor Lift Platform-HY Series

33

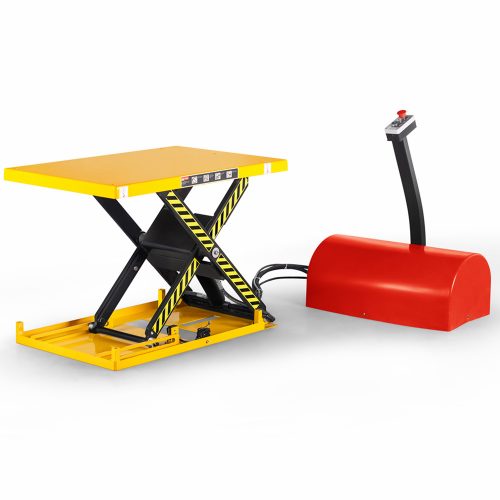

    Stationary scissor lift platform is a cargo lifting equipment with good lifting stability and wide applicability. This equipment is mainly used for transporting goods between height differences in production lines; Material online and offline; Adjust the height of the workpiece during assembly; High altitude feeder feeding; Lifting of components during assembly of large equipment; Loading and unloading of large machine tools; Warehouse loading and unloading facilities are equipped with forklifts and other handling vehicles for fast loading and unloading of goods.

Configuration and performance:

1. Heavy duty design with larger platform.

2. They are manufactured to all European safety standards including EN1570:1999.

3. Remote power pack with pedestal and controls, pretected to IP54.

4. Upper platform fitted wity safety perimeter to prevent descent on contact with obstructions.

5. 24V control box with UP and DOWN buttons and emergency stop.

6. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50Hz/3 phase.

7. Hose burst safety valve to stop the lift table lowering in case of hose breakage.

8. Removable lifting eyes to facilitate handing and installation of the lift table.

9. Oiless bushings on pivot points.

Model No.UnitHY1001HY1002HY1003HY1004HY1005
Capacitykg10001000100010001000
Platform Sizemm1450×11401600×11401450×8001600×8001600×1000
Base frame sizemm1325×10741325×10741325×7341325×7341325×734
Min. table heightmm8585858585
Max. table heightmm860860860860860
Lifting timesec.2525252525
Power supplyV/Hz380/50380/50380/50380/50380/50
Lift motorKwAC0.75AC0.75AC0.75AC0.75AC0.75
Net weightkg357364326332352
Model No.UnitHY1501HY1502HY1503HY2001HY2002
Capacitykg15001500150015001500
Platform Sizemm1600×8001600×10001600×12001600×12001600×1000
Base frame sizemm1325×7341325×7341325×7341427×7341427×734
Min. table heightmm105105105105105
Max. table heightmm870870870870870
Lifting timesec.3030303535
Power supplyV/Hz380/50380/50380/50380/50380/50
Lift motorKwAC2.2AC2.2AC2.2AC2.2AC2.2
Net weightkg302401415419405
