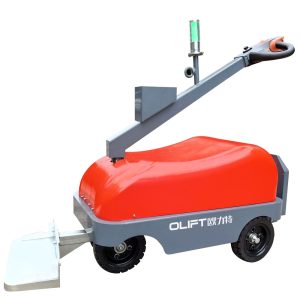

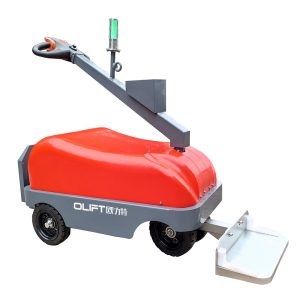

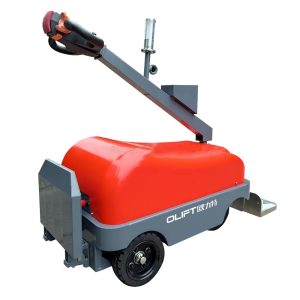

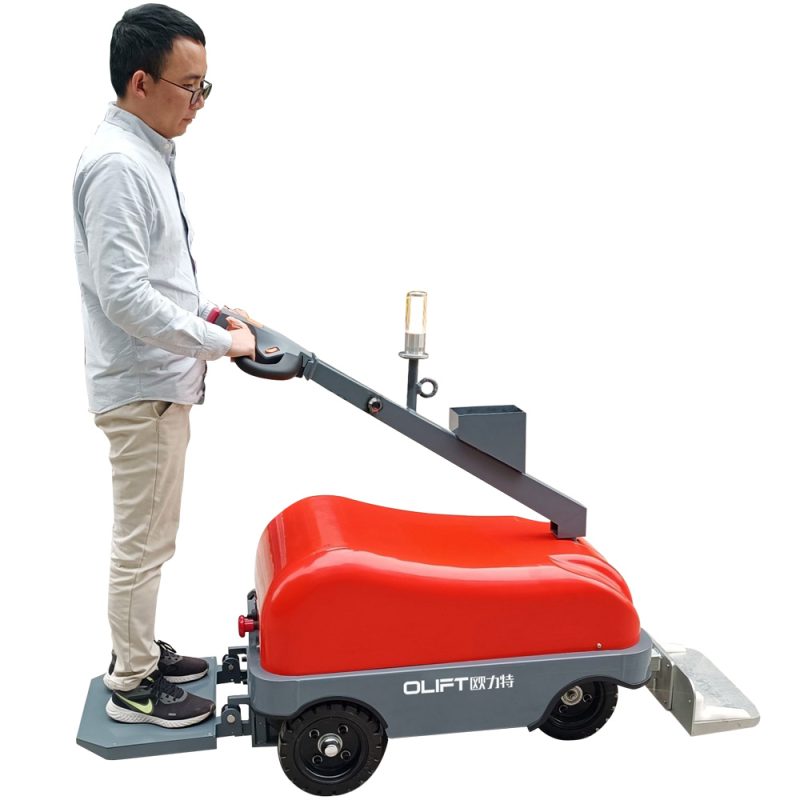

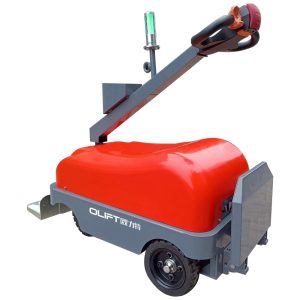

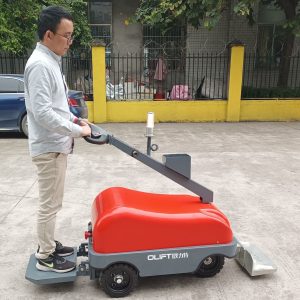

This airport baggage (supermarket) electric tractor is designed to solve the problem of batch collection and transportation of baggage trolleys and cargo carts in large places such as airports, supermarkets, warehouses, etc. It integrates an efficient power system and an intelligent operation interface, aiming to reduce the labor burden, improve transportation efficiency, and ensure safe and convenient operation.
| Model | TT12L | |
|---|---|---|
| Power supply | Electric | |
| Operating type | Standing type | |
| Max traction weight | Kg | 1200 |
| Rated pulling force | N | 350 |
| Wheelbase | mm | 680 |
| Truck weight (with battery) | Kg | 215 |
| Battery weight | Kg | 70 |
| Tire type(Drive/Supporting wheel) | Solid rubber wheel | |
| Sizes of drive wheel(diameter X width) | mm | 2XΦ250×75 |
| Sizes of Supporting wheel (diameter X width) | mm | 2XΦ250×75 |
| Drive/Supporting wheel No. (X=Drive wheel) | mm | 2x/2 |
| Front gauge | mm | 575 |
| Overall height | mm | 1185 |
| Height of tiller in drive position | mm | 1100 |
| Hook height | mm | 116 |
| Overall length | mm | 1485 |
| Overall width | mm | 645 |
| Ground clearance | mm | 100 |
| Turning radius | mm | 1290 |
| Drive speed(laden/unladen) | Km/h | 5/7 |
| Rated pulling force | N | 300 |
| Max pulling force | N | 500 |
| Max grade ability(laden/unladen) | % | 5 |
| Brake type | Electromagnetic | |
| Drive motor rating S260min | V/Kw | 0.8 |
| Charger(external) | V/A | 24/10 |
| Battery capacity | V/Ah | 2×12/107 |
| Type of drive control | DC | |
| Steering type | Mechanical | |
| Noise level | dB(A) | <70 |
| Type of trailer coupling | Latch |
