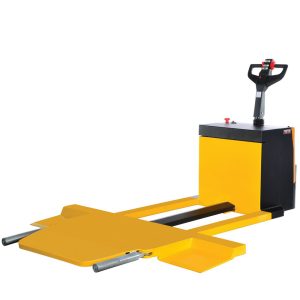

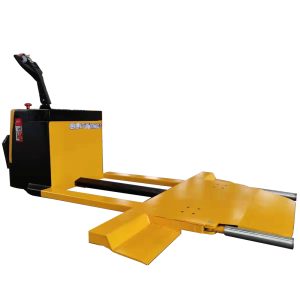

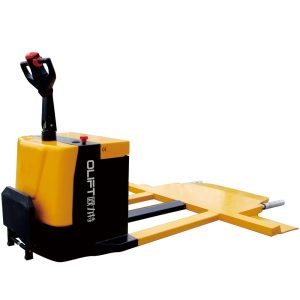

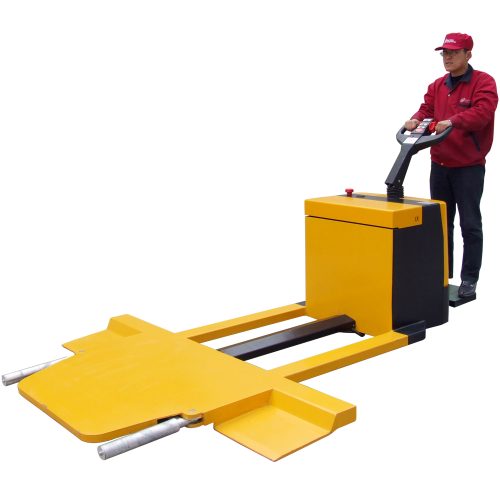

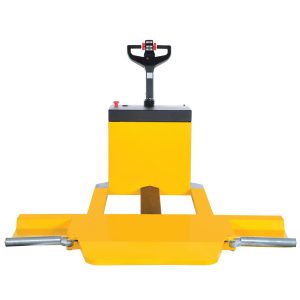

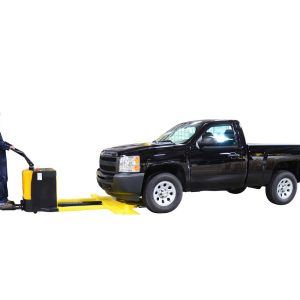

This car mover can move the car to the place where you want, suitable for a variety of 4S Auto Shop, Auto repair factory.
1.Special design for move car.
2.Easy handling and maintains.
3.Special Size are available upon request.
4.Intelligent Micro computer Controll System.
5.Imported Pump Station.
6.Large Volume Battery, Smart Charger.
7.Adopt to European Standard and certification.
Model number | TC250 | TC350 | TC450 | |
---|---|---|---|---|
Capacity | kg | 2500 | 3500 | 4500 |
Main body width | mm | 720 | 720 | 804 |
Length of location for tyres | mm | 550 | 550 | 550 |
Width of location fro tyres | mm | 375 | 400 | 400 |
Power of driving motor | kw | 1.2 | 1.5 | 1.8 |
Power of lift motor | kw | 2 | 2 | 2.5 |
Wheel material | PU | PU | PU | |
Brake style | Electromagnetic | Electromagnetic | Electromagnetic | |
Driving wheel dimension | mm | Φ250×80 | Φ230×90 | Φ250×100 |
Balance wheel dimension | mm | Φ76×36 | Φ76×36 | Φ130×55 |
Front wheel dimension | mm | Φ75×60 | Φ75×60 | Φ75×60 |
Speed(laden/unladen) | km/h | 4.0 – 5.0 | 4.0 – 5.0 | 4.0 – 5.0 |
Gradeability(laden/unladen) | % | 5% / 10% | 5% / 10% | 5% / 10% |
Battery | v/Ah | 12x2v/210Ah | 12x2v/210Ah | 12x2v/280Ah |
Charger | v/A | 24/30 | 24/30 | 24/40 |
Overall Length | mm | 2520 | 2660 | 3185 |
Overall width | mm | 1850 | 1950 | 1950 |
Overall height | mm | 1350 | 1385 | 1400 |
Net weight | kg | 625 | 675 | 820 |
